Low Vibration 5 Poles 180W Brushless DC Planetary Gear Motor

Place of Origin : China

Brand Name : OEM

Certification : CE/ISO/ROHS

Supply Ability : 25000pc/month

Packaging Details : with export carton

MOQ : Negotiable

Price : Negotiable

Delivery Time : 15-25days

Payment Terms : L/C, T/T, Western Union, Paypal

Torque : 2Nm

Construction : Permanent Magnet

Speed(RPM) : 20-80rpm

Continuous Current(A) : 11A

Efficiency : IE 3

Color : Black

Voltage(V) : 12V/24V/36V/48V

Material : Aluminum Alloy

Size : 92*92mm

Noise : DB<50(A)

Contact Now

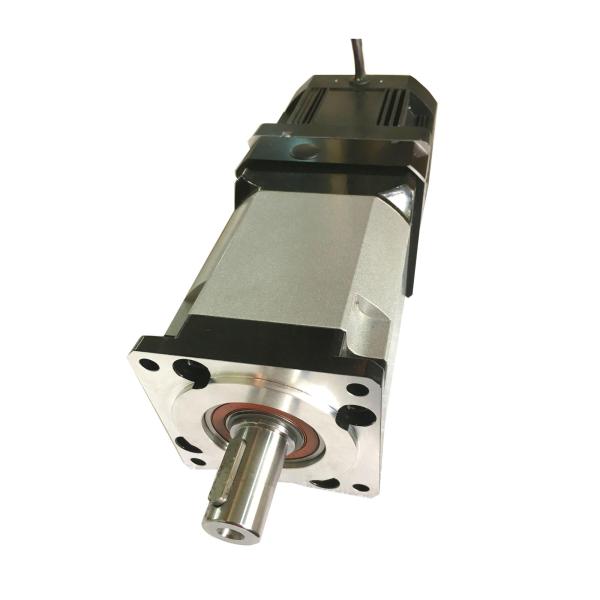

Low Vibration 5 Poles 180W Brushless DC Planetary Gear Motor
Products Description
This is a kind of brushless DC motor installed with planetary gearbox. High output torque and low rotation speed are major characteristics of this kind of product. Some charateristics of motor such as low noise, adjustable rotation speed and high performance efficiency. are also satisfied.
Advantages
  • Low Noise
  • Low Vibration
  • High Accuracy
  • High Efficiency
  • Long Service Life
  • Gearboxs Avaliable
  • (Planetary Gearbox, Worm Gearbox, Spiral Gearbox)
  • Customization Avaliable

Parameters
Power Supply
Direct Current
Commutation
Brushless
Motor Type
Permanent magnet Motor
Pair of Poles
5
Phase
3
Ingress Protection
IP54
Cooling Method
Natural Cooling
Working Environment
Explosion-proof brushless dc motor should be avoided using in corrosion gaseous or extreme high humidity environment.
Temperature
0°C ~ 55°C
Humidity
85%RHMax
Insulation Class
B Class
Seismic/Shock Resistance
0.5/2.5G
Motor Details
Product Name
Brushless DC motor
Rated Voltage (V)
24V/36V/48V/310VDC
Rated Power (W)
180W
Rated Current (A)
11A
Rated Torque (N.m)
2N.m(MOTOR) based on gear ratio
Rated Rotation Speed (rpm)
based on gear ratio (3000rpm output rotation speed of motor)
No-Load Rotation Speed (rpm)
based on gear ratio (3500rpm output rotation speed of motor)
Insulation Resistance @ 500VAC (MΩ)
100
Shaft Type
Key Shape

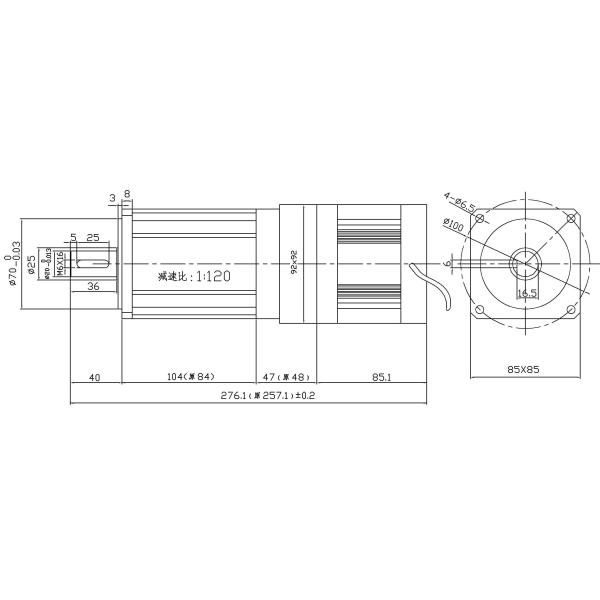

Size (mm)
92*92
Protection Feature
customizable (water-proof/explosion-proof)
